Automatically Prepare 3D Models for Lasercutting in Rhino December 21

Use Grasshopper to generate a waffle structure from a surface.

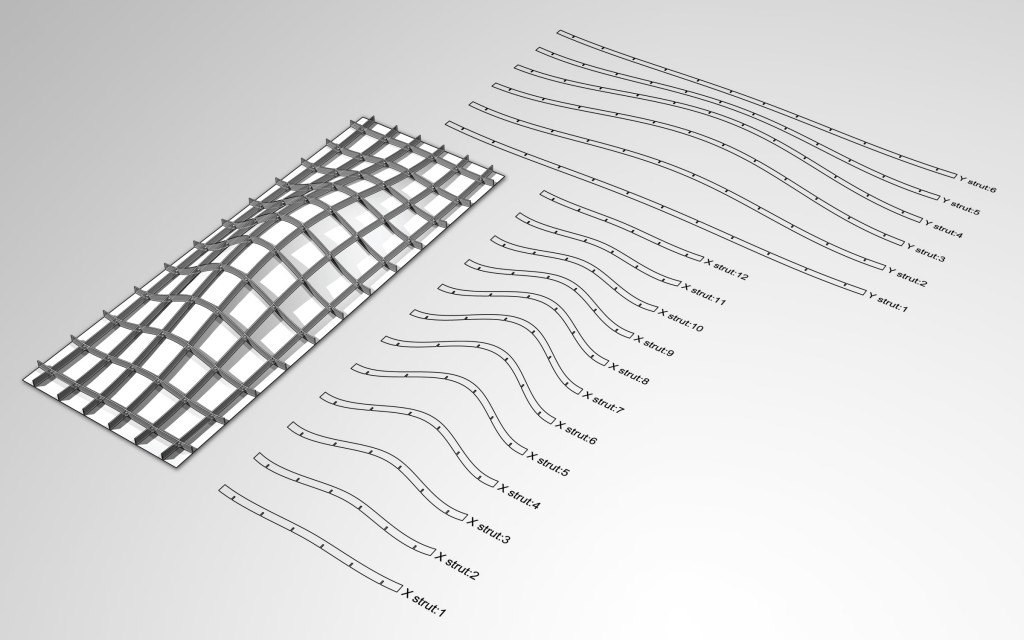

Waffle Structural System is a definition (program) for Grasshopper, the generative modeling plugin for Rhino, that will automatically make slotted structure ready for lasercutting.You can control the number of struts on the x- and y-axis as well as the strut height and material thickness. The program also lays out the profiles flat to prepare them for cutting.
